Description
The H5-A combines advanced computerized control with a top and bottom feeding system, delivering exceptional fabric control and stitch consistency. Built for industrial applications, it handles normal materials, gloves, bags, and light materials with equal efficiency.
Its high puncture force allows effortless penetration through thick layers, while the synchronized feeding mechanism prevents slippage and uneven stitches. A simple digital control panel makes operation easy to learn, and the machine supports multiple configurations to suit different production needs. The H5-A is an ideal choice for factories seeking speed, reliability, and adaptability in heavy-duty sewing operations.

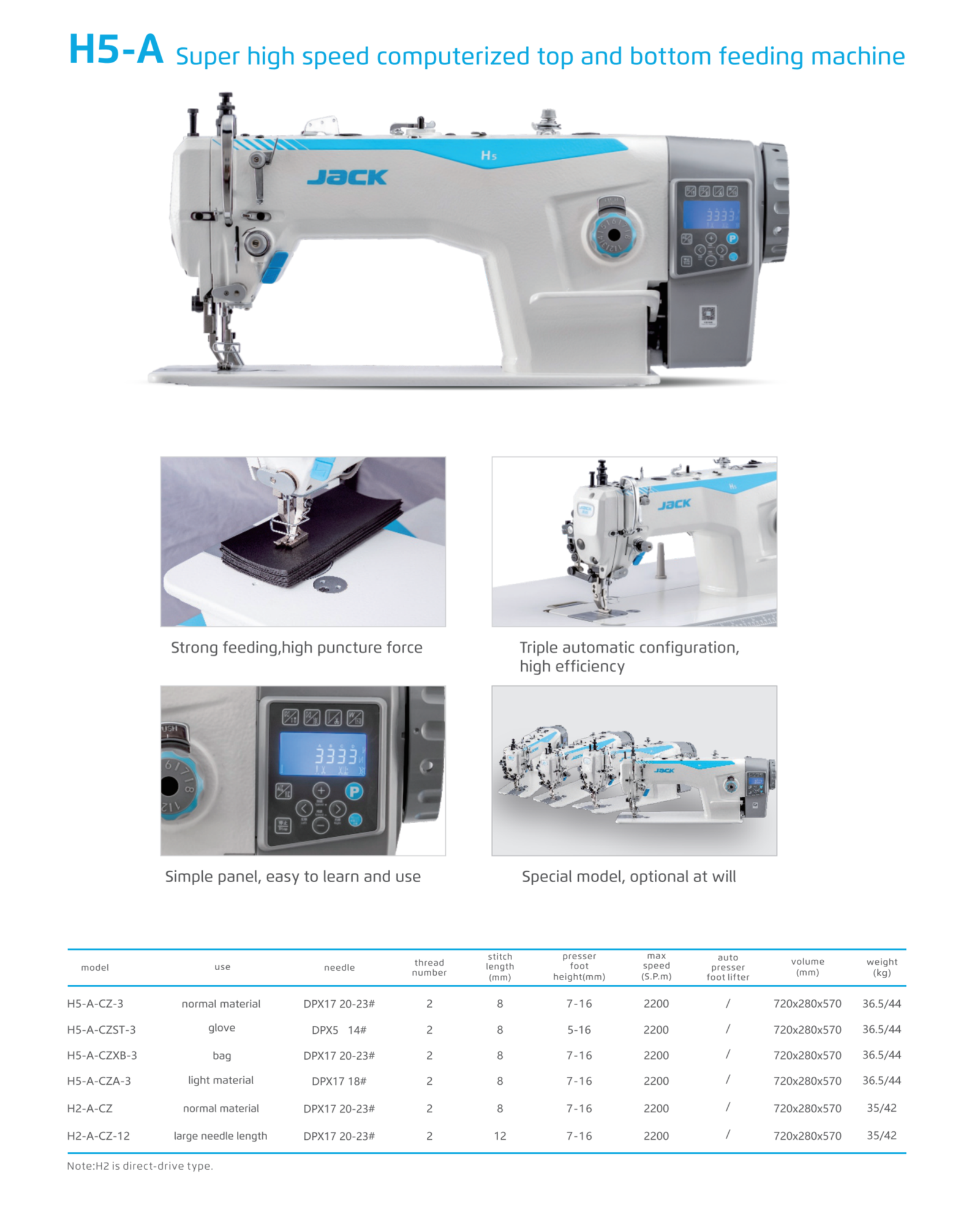

Technical parameters:
● Model options: H5-A-CZ-3 / H5-A-CZST-3 / H5-A-CZXB-3 / H5-A-CZA-3 / H2-A-CZ / H2-A-CZ-12
● Application: Normal material, gloves, bags, light materials
● Needle types: DP×17 (20–23# / 18#), DP×5 (14#)
● Number of threads: 2
● Stitch length: 8 mm / 12 mm (model dependent)
● Presser foot lift height: 5–16 mm / 7–16 mm
● Maximum sewing speed: 2200 stitches/min
● Auto presser foot lifter: Optional / model dependent
● Machine dimensions: 720 × 280 × 570 mm
● Net / Gross weight: 35–36.5 / 42–44 kg
● Drive type: Direct drive (H2 series)
Automatic functions:
● Computerized stitch control for precision sewing
● Top and bottom feeding synchronization
● High puncture force for thick materials
● Triple automatic configuration for higher efficiency
● Digital control panel with easy parameter adjustment
● Optional configurations for special applications
● Stable high-speed operation with low vibration
