Description

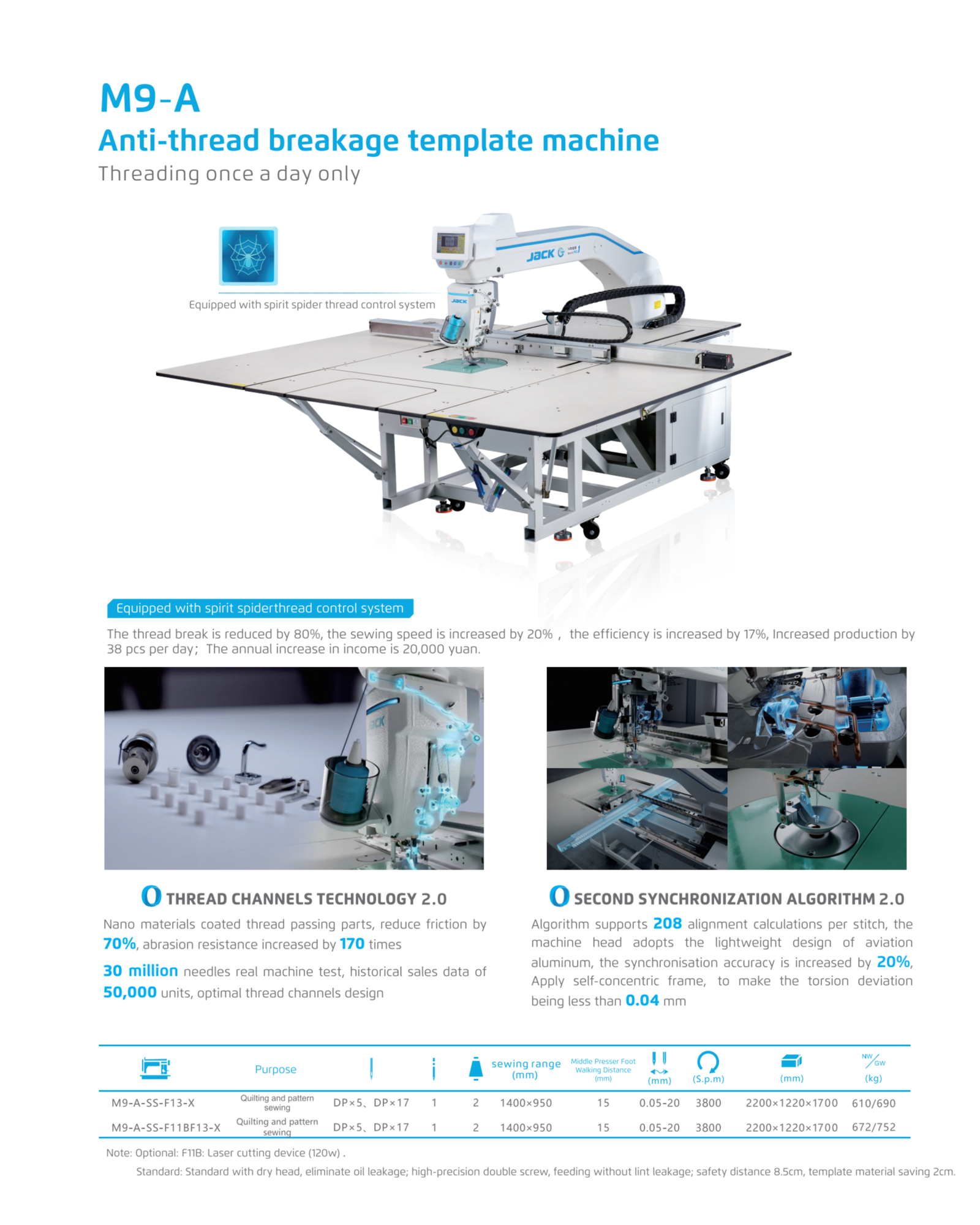

The M9-A Template Sewing Machine is engineered with JACK’s Spirit Spider Thread Control System, dramatically reducing thread breakage while increasing sewing speed and operational efficiency. Designed for long, continuous working hours, it allows operators to thread the machine just once a day, minimizing downtime and material waste.
With Thread Channels Technology 2.0 and Second Synchronization Algorithm 2.0, the M9-A delivers ultra-smooth thread movement, precise stitch alignment, and stable pattern execution. Its rigid frame structure, aviation-grade aluminum head, and high-precision feeding system make it ideal for quilting, decorative patterns, and template-based sewing applications in industrial environments.
Technical parameters:
● Model options: M9-A-SS-F13-X / M9-A-SS-F11BF13-X
● Needle type: DP×5 / DP×17
● Number of needles: 1
● Number of threads: 2
● Sewing range: 1400 × 950 mm
● Middle presser foot walking distance: 15 mm
● Stitch length range: 0.05 – 20 mm
● Maximum sewing speed: 3800 stitches/min
● Machine dimensions: 2200 × 1220 × 1700 mm
● Net / Gross weight: 610 / 690 kg (up to 752 kg)
Automatic functions:
● Spirit Spider thread control system for anti-breakage
● Thread Channels Technology 2.0 with nano-coated components
● Friction reduction by 70% in thread path
● Abrasion resistance increased by 170 times
● Second Synchronization Algorithm 2.0
● Supports 208 alignment calculations per stitch
● Synchronization accuracy improved by 20%
